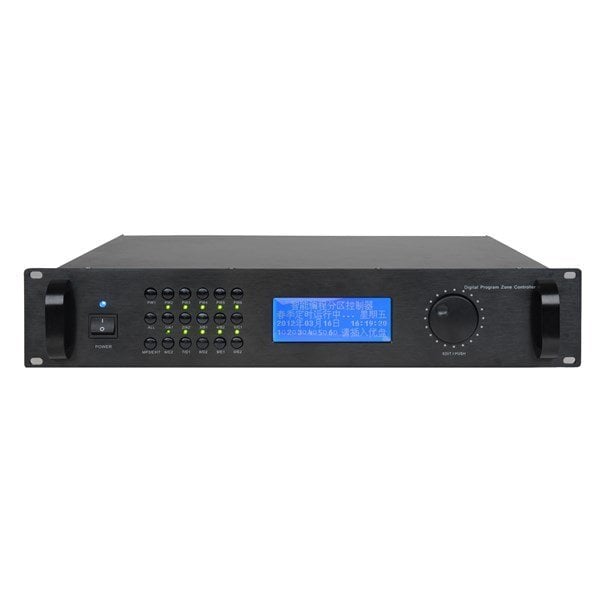

CMX PA-200MC Intelligent PA System 10 Zone Controller with Mp3
CMX PA-200MC Intelligent PA System 10 Zone Controller with Mp3
|
Model |
PA-200MC |
|
Description |
Intelligent PA System 10 Zone Controller with Mp3 |
|
Function Button |
Light touch press buttons include: 4 power switch buttons, 1 MP3 control button, 1 backup program switch,10 zones speaker selector button, all zones button, 1 music or paging switch button. One menu button. |
|
Indication Method |
192x64 LCD display, English |
|
Audio Output |
1KΩ0.775V Unbalance(6.35 RC), 0V(Short Circuit) Industrial Standard |
|
EMC Input and Output |
Integrated Terminal Block, 0V(Short Circuit) Industrial Standard |
|
100V Input |
Integrated Terminal 5 Channels: CHA CHB CHC CHD CHE |
|
Amplifier Input and Output |
0.5W |
|
Monitor Power of Speaker |
−∞~0dB |
|
Monitor Volume Attenuator |
24 hours(hour-minutes-seconds) weekly |
|
Time Mode |
Total 5pcs(4 normal programs, 1EMC) |
|
Program Quantity |
Total 512 Steps, 1 day 200 Steps |
|
Program Steps |
RS422 |
|
Communication Protocols |
RS485 and RS232 |
|

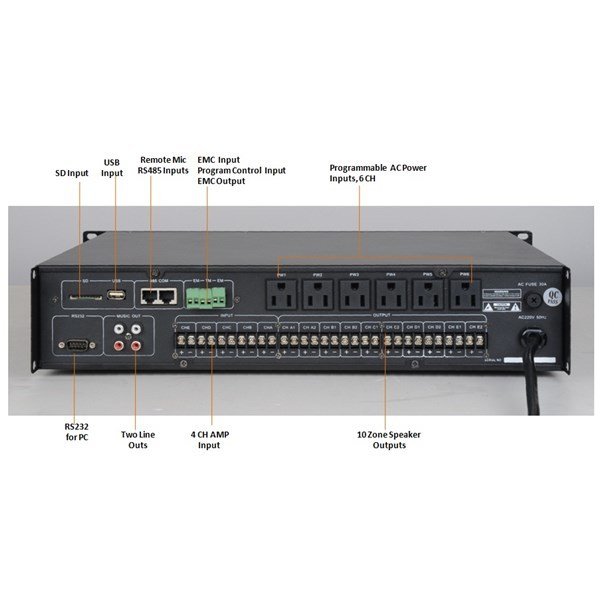

Communication Port |
Two RJ45 ports for remote microphone, one RS232 port for PC |
|
Communication Speed |
4800bps |
|
MP3 Frequency Response |
20Hz~20KHz/ 1dB |
|
Mp3 Store Format |
Compatible FAT12, FAT16, FAT32 |
|
Power Supply |
~110V/60Hz or ~230V/50Hz |
|
Dimensions |
484x303x88mm |
|
Weight |
6.8kg |
