CMX PA-1600 Intelligent 16 Channel Audio Matrix Controller
CMX PA-1600 Intelligent 16 Channel Audio Matrix Controller
|
Model |
PA-1600 |
|
Description |
Intelligent 16 Channel Audio Matrix Controller |
|
Channel |
16 channel inputs and 16 channel outputs |
|
Max Capacity |
128 zones by cascaded 8 units together |
|
Call Station Input |

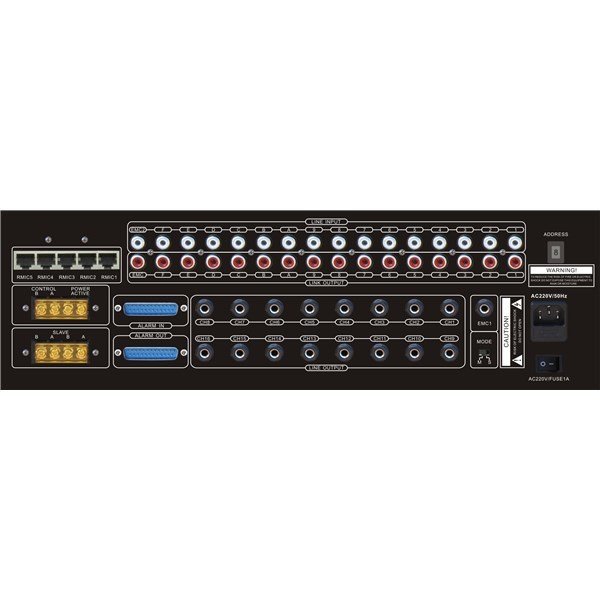

Call station input 1-5, RJ45 port, 10kΩ, 10V, balanced |
|
Input |
Line 1-16: 10kΩ, 330mV, unbalancedRCA input EMC1: 10kΩ, 330mV, unbalanced |
|
Output |
Line 1-16: 10kΩ, 330mV, unbalanced RCA output EMC1: 10kΩ, 0.775mV, 0dB, unbalanced |
|
Alarm |
Alarm input: 0V, closed circuit contact Alarm output, 0V, closed circuit contact |
|
Display |

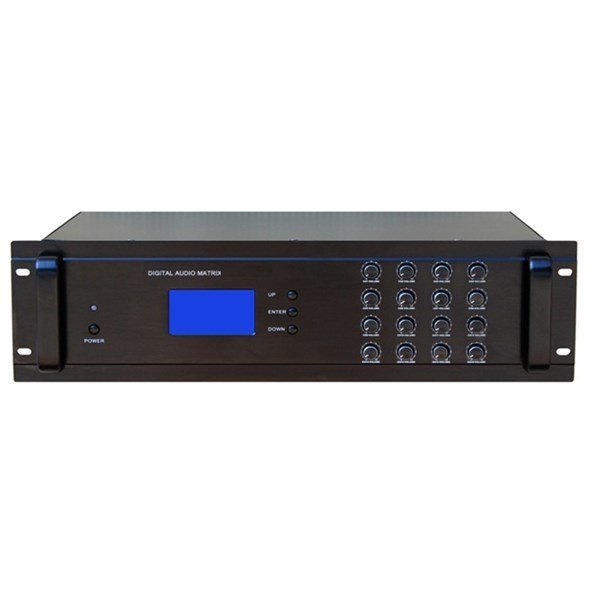

128×64 LCD display in English |
|
Frequency Response |
60-16KHz (±3dB) |
|
Control |
16 zone output volume controls Menu buttons: up, enter & down ID dip switch Master or slave dip switch |
|
Protection |
AC fuse 0.5A, 1PCS |
|
Power Consumption |
20W |
|
Power Supply |
AC 230V or 110V, 50-60Hz |
|
Dimension |
484(W)×390(D)×133(H)mm |
|
Net Weight |
7.1kg |
|
Packaging |
520(W)×455(D)×185(H)mm |
|
Gross Weight |
8.5kg |
