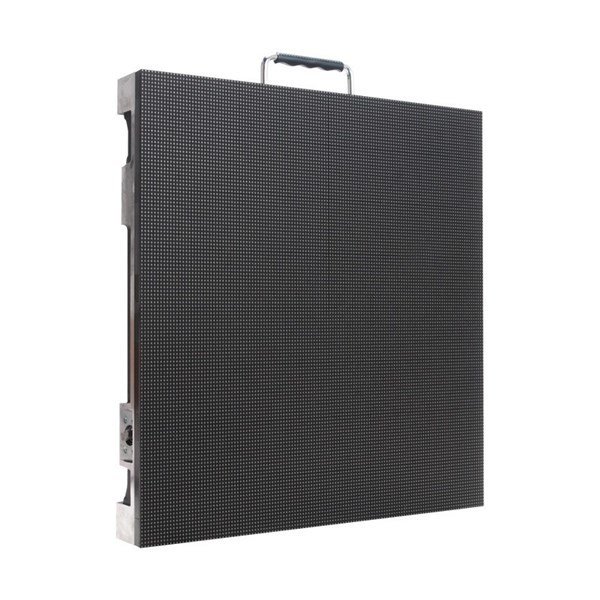

American Dj AV3 - Yuksek Çözünürlüklü Led Ekran Panel
American Dj AV3 - Yuksek Çözünürlüklü Led Ekran Panel
Özellikler
Pixel Pitch: 3.91mm (0.25”)
LED Configuration: 3-in-1 SMD2121 LED
Pixel Density: 128x128; 65536 per square meter
Size :19.75” x 19.75” x 4” / 500 x 500 x 100mm
Module Quantity: 2
Weight: 20 lbs. / 9kg.
Mekanik
Surface Flatness: Gaps<0.5mm
Optik
Brightness: 1000 NITS
View Angle: Horizontal 120°/Vertical 120° @ 13 ft. (4m)
Gray Scale / Display Color: 14-bit
Brightness Adjustment: 0~100% 100 Levels
Processing: 14-bit
Güç
Operation Power: 100~240V 50-60Hz
Max. Power Consumption: 170W/per panel
Ave. Power Consumption: 70W/per panel

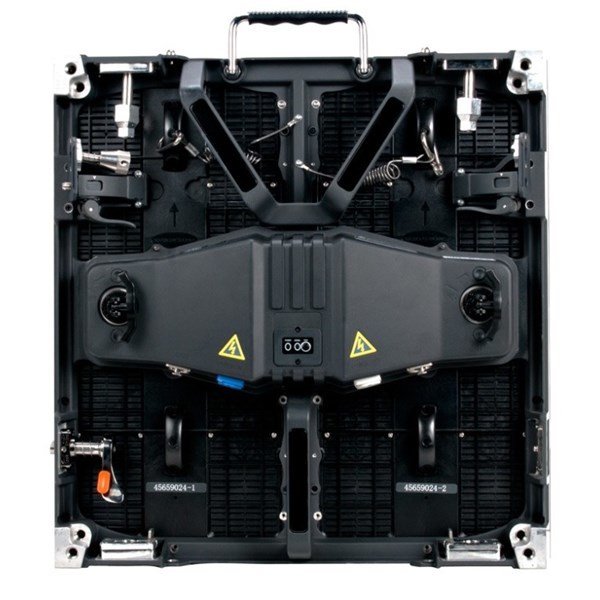

Connections Power/Data: Power-PowerCon In/Out; Data EtherCon In/Out
Kontrol Sistem
Control Mode: Nova Star Synchronous System with Control via DVI
Frame Update Frequency: 50-60Hz
Scan Mode: 1/16
Refresh Rate: 1920Hz
Support Input: Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance: Ethernet Cable <100m or Fiber Optic>120m
Support VGA Mode: 1024 x 768, 1280 x 1024, 1600 x 1200, 1920 x 1280
Brightness Correction: Pixel, Module, Cabinet
Çevresel Koşullar
Operating Temp / Humidity: Fahrenheit: -4° + 104° / Celsius: -20° + 40°/ 10-90% (No Condensation)
Operating Life / MTBF: 50,000 Hours / 5,000 Hours
Protection Level: IP20 (Front and Back)
Out of Control Rate: <0.02%
Listings: ETL, CE, FCC Class A
Aksesuar

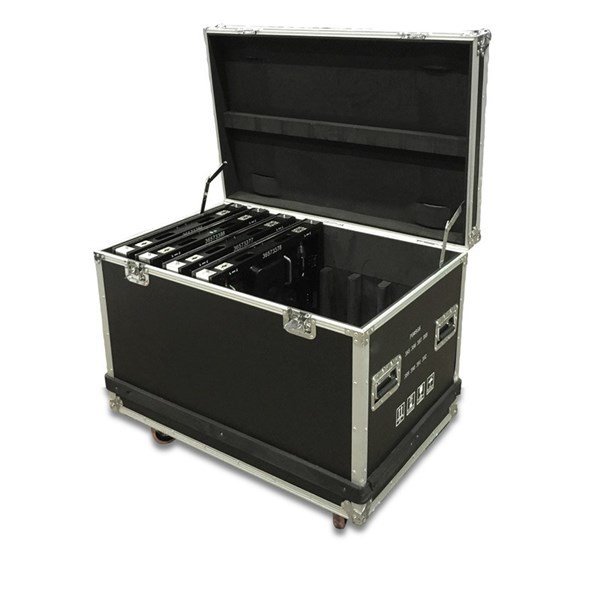

AV3FC (AV3095): Flight Case - fits 8 AV6 Video Walls

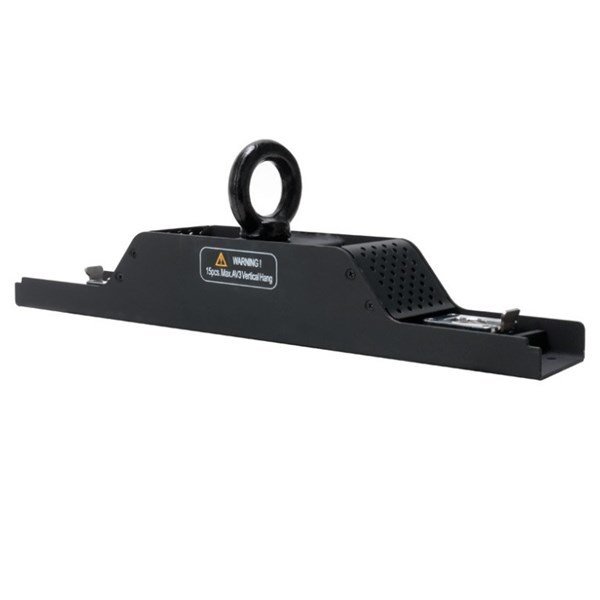

AV3RB1 (AV3070): Rigging Bar - Connect up to 15 AV3 Video Panels
AV3RSB (AV3111): Rear Support Bracket
Novastar VX4S: Video Processor
Novastar MCTRL-300: Video Processor
Media Master Express 4: Video Software
GrandVJ 2.0: Video Software
Kablo
Cabinet to Cabinet Data Link Cables (NEUTRIK Ethercon Connectors)
MCTRL-300 Processor to Cabinet (NEUTRIK Ethercon Connectors)
VX4S Processor to Cabinet (NEUTRIK Ethercon Connectors)
NOVA PRO HD Processor to Cabinet (NEUTRIK Ethercon Connectors)
NEUTRIK powerCON Link Cables
NEUTRIK powerCON Main Power Cables
